ARRI SkyPanel S360-C LED Softlight
ARRI SkyPanel S360-C LED Softlight
Regular price
$800.00 (ex GST Per Day)
Regular price
$0.00
Sale price
$800.00
Unit price
/
per
Couldn't load pickup availability
Description
The ARRI SkyPanel has always been known for its tremendous output and large light aperture. The new S360-C has expanded ARRI’s LED soft light range with the largest and brightest SkyPanel to date. Not only is the S360-C powerful, but it is packed full of exciting features, making it one of the most versatile LED fixtures on the market. Features include full colour control, lighting effects on a huge aperture, wireless DMX built in, a unique carbon fiber yoke, and much more. The S360-C is truly a beast of a light.
Specs
| Optical System | Swappable Soft Diffusion Panels |
| Light Aperture | 1280 x 870 mm / 50.4 x 34.4“ |
| Beam Angle | 105º (Half Peak Angle) |
| Weight | Manual Version: 41 kg / 90.4 lbs |
| Handling | Carbon Fiber Yoke, Dual High-Strength Tilt Lock |
| Mounting | 28 mm Spigot (Junior Pin) |
| Tilt Angle | +/- 90° |
| Lamphead Voltage Input | 54V DC |
| Power Consumption | 1,500 W Nominal, 1,600 W Maximum |
| Lamphead Power Connection | Male 4-Pin Metal Locking - 30 Amp |
| White Light | 2,800 K to 10,000 K continuously variable correlated colour temperature |
| colour Light | Full RBG+W colour gamut with Hue and Saturation control |
| colour Temperature Tolerance | +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal) |
| colour Rendition | CRI Average > 95 TLCI Average > 90 |
| Green-Magenta Adjustment | continuously adjustable (Full Minusgreen to Full Plusgreen) |
| Dimming | 0 to 100 % continuous |
| Control | On-Board Controller, 5-Pin DMX In and Through, EtherCon LAN network connectivity, USB-A, Art-Net |
| Wireless Control | LumenRadio CRMX (DMX & RDM) |
| Remote Device Management (RDM) | DMX Setup, Hour Counter and Standard RDM commands |
| Software Interface | Ethernet: DMX Setup, Fixture Status & Control, and Firmware Upgrade through PC or Mac USB-A: Software Upgrade via flash drive |
| Housing colour | Blue/Silver |
| Ambient Temperature Operation | -20 to +45º C (-4 to +113º F) |
| Protection Class / IP Rating | I / IP20 |
| Estimated LED Lifetime (L70) | 50,000 hours |
| Estimated colour Shift Over Lifetime (CCT) | +/- 5 % |
| Certifications (pending) | CE, CB, ENEC, cNRTLus, FCC, PSE |
| Power Supply Unit | specs |
| Power Supply Input Range | 90 to 260V ~, 50/60 Hz |
| Power Supply Output Range | 54 V DC |
| Power Input Connection | powerCON 32A (Schuko / Edison / China / Japan / Bare Ends cables available) |
| Power Output Connection | Female 4-Pin Metal Locking - 30 Amp |
| Weight | 10.7 kg / 23.6 lbs |
| Dimensions | 540 x 240 x 210 mm / 21.3 x 9.5 x 8.3“ |
| Control | On-Board On / Off Switch |
| Mounting | SkyPanel PSU Super Clamp Adapter |
| Certifications (pending) | CE, CB, ENEC, cNRTLus,PSEAll |
More Info
Enormous Aperture
Soft lights are all about size, the larger the aperture the better. With the S360-C, size has not been compromised. The surface area of the S360-C is over 5.8 times larger than the S60 and produces beautiful soft light in a wide 105º beam angle. The light will wrap around large objects and throw much farther than the smaller SkyPanels.
At over 120,000 lumens, the S360-C is one of the brightest LED soft lights on the market. Compared to the S60-C, the S360-C is more than four times brighter and maintains excellent colour quality and tuneability. Consuming only 1500 watts, the S360-C is twice as bright as a 4,000-watt tungsten soft light and over three times as bright as a 12,000-watt tungsten space light. Achieving an energy efficacy of over 80 lumens per watt, the S360-C is also one of the most eco-friendly LED soft lights available while also being one of the brightest.
Wireless DMX, Built In
SkyPanel has always had a multitude of ways to control the light output; DMX, RDM, Art-Net, sACN, 5-Pin XLR, and Ethernet. The S360-C adds another important communication method, and this one does not involve any wires: Wireless DMX by LumenRadio. Built into every S360-C, the CMRX chip allows for DMX and RDM communication without the hassle of cables and distribution equipment. Simply link a compatible LumenRadio transmitter to the S360-C and you’re good to go. Using the 5-Pin DMX output on the S360-C also allows for daisy chaining other non-wireless SkyPanels to the DMX network.
Full Colour Tuneability
As with all ARRI LED lampheads, the S360-C is fully tuneable. Easily adjust the CCT from 2800 K to 10,000 K with plus/minusgreen control and access the full colour gamut with hue and saturation, RGBW mixing, digital gels, source matching, or CIE x, y coordinates. Achieving over 85% of the colours within the Rec 2020 colour space, it is now easy to create the look and colour you want right on set.
Lighting Effects on a Grand Scale
In SkyPanel Firmware 3.0, powerful lighting effects were introduced into the SkyPanel family. And with the introduction of the S360-C, these effects are even more impressive. Over the large aperture of the S360-C, the dynamic light effects appear more dramatic and powerful. The fire effect covers a huge area, the cop car effect can blast down a street, and the paparazzi effect looks like an entire press corps snapping photographs. With the turn of a few knobs, amazing and realistic effects are at the crew’s fingertips.
Swappable Panels
SkyPanel is one of the only LED soft lights to allow for the changing of diffusion panels in front of the LEDs. This feature is also offered with the S360-C. The diffusion panels are exchangeable and come in Lite, Standard, Heavy, and Intensifier. The Intensifier increases S360’s brightness by 50%, allowing the light to be thrown even farther.
SkyPanel is one of the only LED soft lights to allow for the changing of diffusion panels in front of the LEDs. This feature is also offered with the S360-C. The diffusion panels are exchangeable and come in Lite, Standard, Heavy, and Intensifier. The Intensifier increases S360’s brightness by 50%, allowing the light to be thrown even farther.

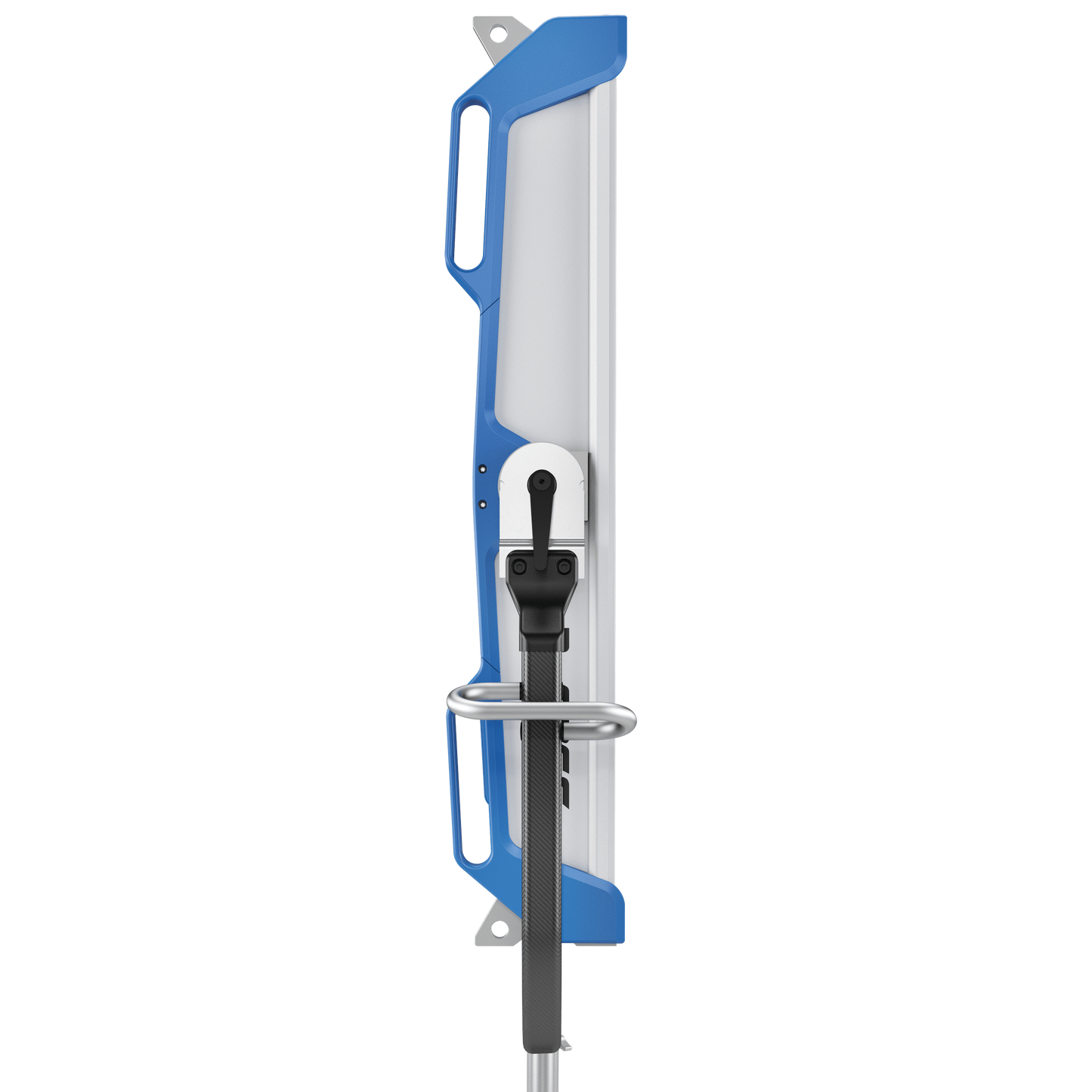

Carbon Fiber Yoke
The S360-C comes standard with a state-of-the-art carbon fiber yoke. This yoke reduces the overall weight of the lamp head by several kilograms and provides a safe and robust solution. Made with a unique carbon fiber weave and metal reinforced fittings, the S360-C yoke offers a weight reduction of over 50% compared to a typical steel yoke and can support 10 times the weight of the fixture.
A Place for Your Remote
No detail is too small or unimportant in the design of a SkyPanel. The S360-C housing features a SkyPanel Remote docking port. Able to control the S360-C via a USB cable, the SkyPanel Remote can be attached to the docking port on the back of the fixture using the remote’s rear magnet. The docking port provides a space for the remote to rest or, if the fixture is upside-down, a place for an extra set of controls closer to arm’s reach.
