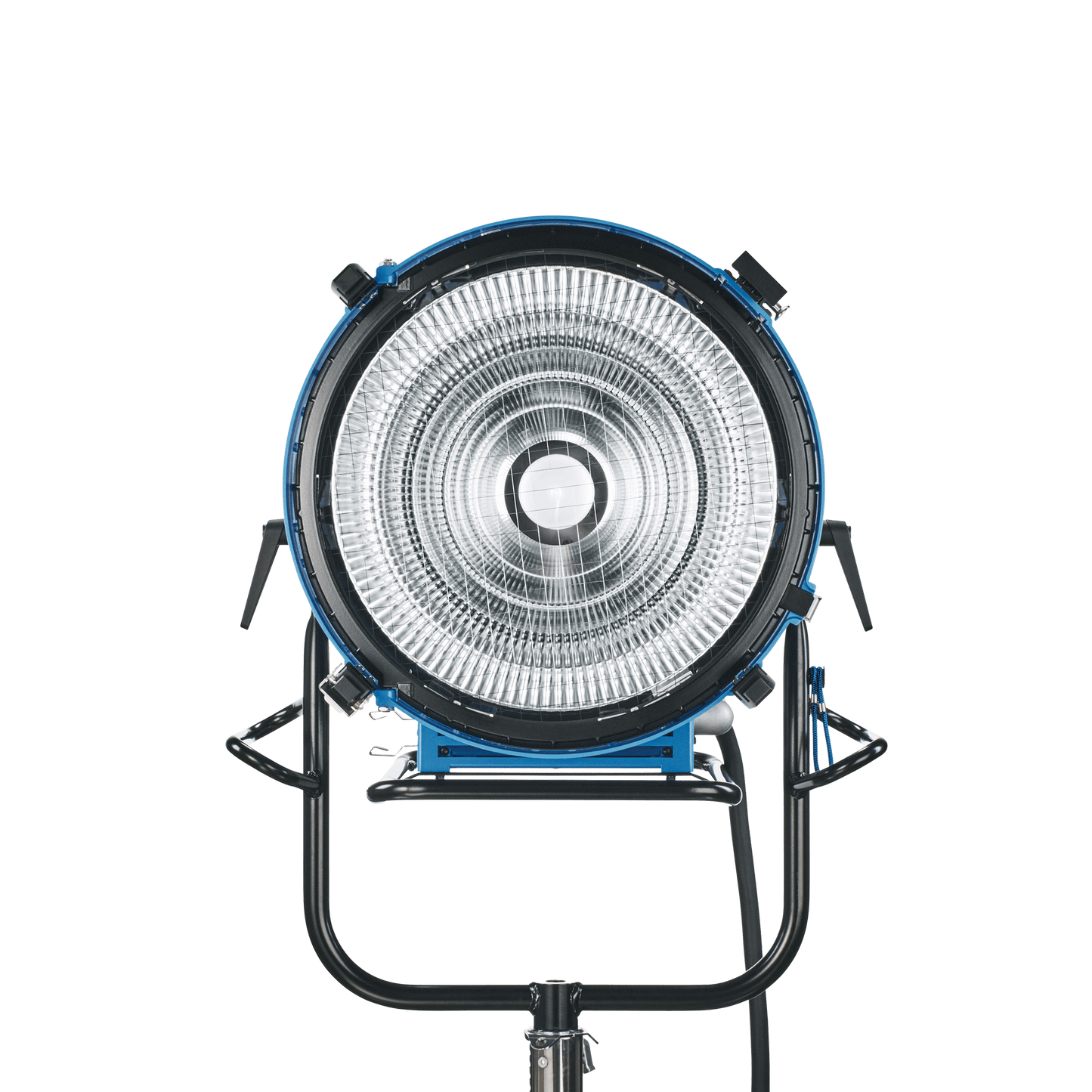

  • ARRI M90 HMI Lamphead Front
1 2

ARRI

ARRI M90 HMI Kit

ARRI M90 HMI Kit

$1,100.00 (ex GST Per Day)
$0.00 $1,100.00
Sale Sold out
Description

To close the gap between the M40 and the ARRIMAX 18/12, the M90 introduces a new power class of 9,000 W. The unit is open-faced and very bright; it is also focusable from 16° up to 49°, producing a remarkably even light field and a crisp, clear shadow. ARRI technology partner Osram developed a new 9,000 W lamp for the M90, which is stable at 1,000 Hz and almost as small as the 6,000 W lamp that can alternatively be used. This allowed ARRI to design the M90 in a very compact housing, barely larger than the ARRISUN 60.



Features
  • Lens-less MAX Technology
  • Closes the gap between M40 and ARRIMAX 18/12
  • New 9000 W power class
  • New 9000 W lamps with the size of 6000 W lamps
  • Superior light quality
  • Light output matches a 12 kW PAR (with lens)
  • As small and lightweight as a 6 kW PAR
  • Focusable from 16° up to 49°
  • Can also be used with 6,000 W lamps and ballasts
  • Uses existing 6 kW cables
  • Cross-cooling allows safe operation until 90° tilt position*
  • Tilt locks on both sides hold any heavy accessories
  • Easy maintenance
  • Protection class IP23
  • Possibility to operate at 1,000 Hz



Specs



Lamphead Type  Open Face with Facetted Reflector, 9000 W
Reflector Type  MAX reflector made of high purity aluminium
Lamp Type  Metal Halide 9000 W/SE GX38; Metal Halide 6000 W/SE GX38 (nominal voltage 120V)
Power Consumption  Power Consumption 9000 W / 6000 W
Voltage Range  160 V / 123 V
Lamp Base  GX38
Dimmability  Yes, 50 - 100% via ARRI Ballast Unit
Cable Options  VEAM
Correlated Colour Temperature  6000 K
Beam Angle  16 - 49° (with 9000 W lamp)
Product Weight  39,5 kg / 87.1 lbs.
Shipping Weight  55,0 kg / 121.3 lbs.
Product Size (HxWxL)  947 x 713 x 716 mm / 37.3" x 28.1" x 28.2"
Shipping Size (HxWxL)  930 x 790 x 910 mm / 36.6" x 31.1" x 35.8"
UV Glass Diameter  500 mm / 19.69"
Accessory Diameter  571 mm / 22.48" (Scrim)
Barndoor Size  584 mm / 22.99"
Mounting  Spigot 28 mm / 1 1/8" (1.1")
Protection Class  I/IP 23
Certifications

CE, CB, GS, cNRTLus


What's In The Box

ARRI M90 Lamphead
1x L1.37480.B M90 Lamphead M-series
