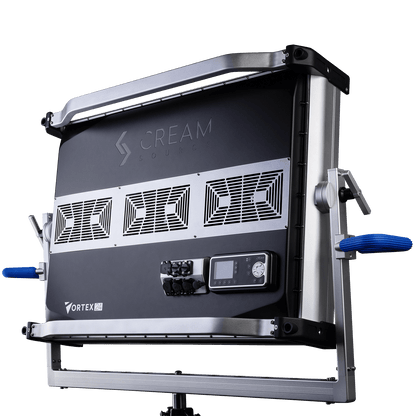

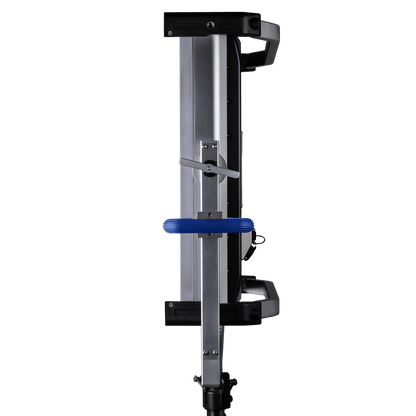

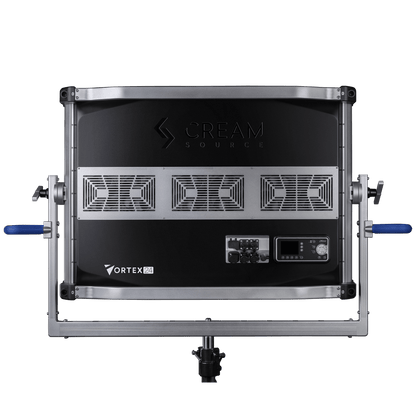

Creamsource Vortex24 Hard Kit
Creamsource Vortex24 Hard Kit
Couldn't load pickup availability
Description

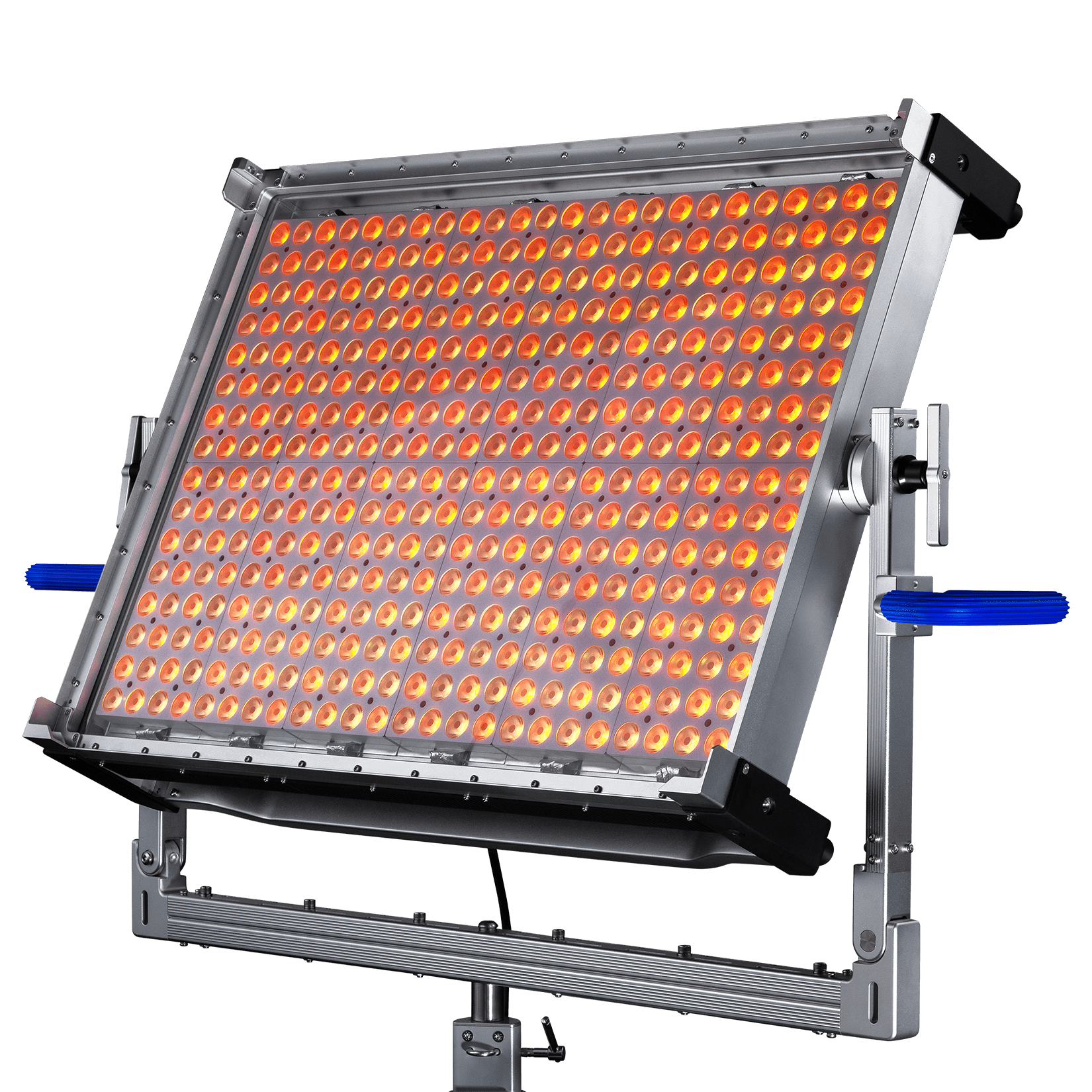

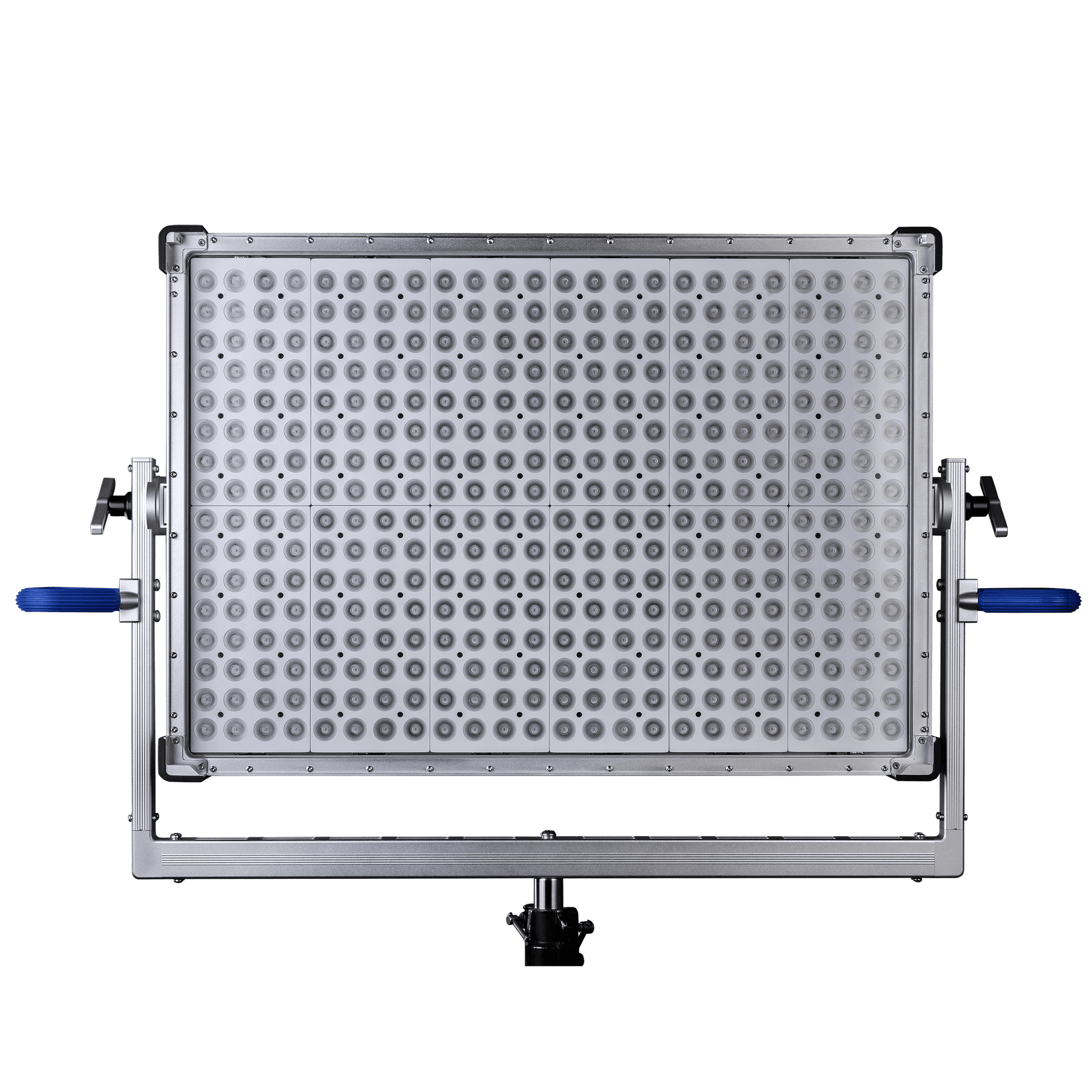

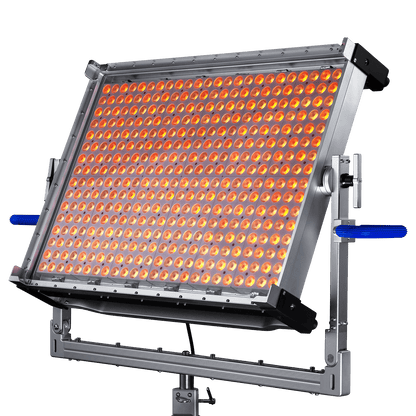

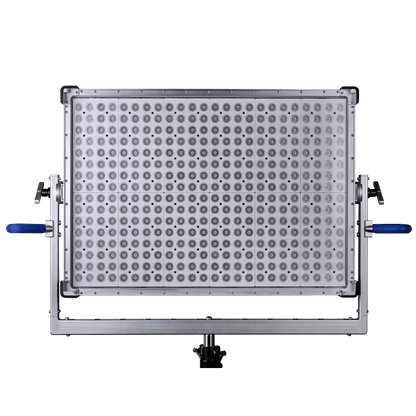

Meet the Vortex24, a dynamic 2x3 lighting system tailored for those seeking expansive coverage and powerful output. Building on the foundation of the Vortex8, the Vortex24 amplifies output threefold, while its larger form factor reduces the need for multiple units and simplifies rigging, especially on Elevated Work Platforms (EWP) or Condors.
Features
- Pixel Precision: 24 pixel zones for lighting effects like fire and motion with smooth dimming across all intensities, all while maintaining colour accuracy.
- Powerfully Efficient: Draws 1950W power, and includes a 'House Power' setting for 15A circuit operation.
- Compact Design: Built-in ballast facilitating easier storage on carts and integration into truck packages.
- Networking Simplicity: Equipped with dual Ethernet ports with a built-in Gigabit switch, enabling single-cable runs and daisy-chaining of units.
- Quick Adjustments: A front latch system enables swift swaps of diffusers and accessories and includes a medium flat diffuser for immediate light softening.
- Light Source: RRGBBW (red+deep red, green, blue+royal blue, white), throwing 90,000lumens at 3m (5600K, naked) with a 20º beam angle
Specs
| Power | 1950W |
| Light Zones (Pixels) | 24 |
| Material | Aluminium/Technopolymer |
| Light Source | RRGBBW LED |
| Colour Range | CCT: 2200 - 15000K, PLUS/MINUS GREEN, HUE/SATURATION, XY, GELS, DIRECT RGBW, EFFECTS |
| CRI / TLCI | Typical 95 |
| Beam Angle | 20° (Half Peak Angle) |
| Tilt Angle | 360° |
| Photometrics Native 3200K/5600K: | 96,350 lx / 8,951 fc @ 1m / 3.3 ft 48,800 lx / 4,534 fc @ 2m / 6.6 ft 27,560 lx / 2,560 fc @ 3m / 9.8 ft 16,990 lx / 1,578 fc @ 4m / 13.1 ft 11,350 lx / 1,054 fc @ 5m / 16.4 ft 8,150 lx / 757 fc @ 6m / 19.7 ft |
| Photometrics Diffuser 3200K/5600K: | 26,940 lx / 2,503 fc @ 1m / 3.3 ft 7,960 lx / 740 fc @ 2m / 6.6 ft 3,730 lx / 347 fc @ 3m / 9.8 ft 2,120 lx / 197 fc @ 4m / 13.1 ft 1,410 lx / 131 fc @ 5m / 16.4 ft 1,010 lx / 94 fc @ 6m / 19.7 ft |
| Mounting | 8x3/8” threaded rigging points, 4x LNX sockets |
| Yoke | Removable quick release yoke |
| Filter Rails | 2 Filter Rails for Secondary Lenses, Diffusers, Accessories |

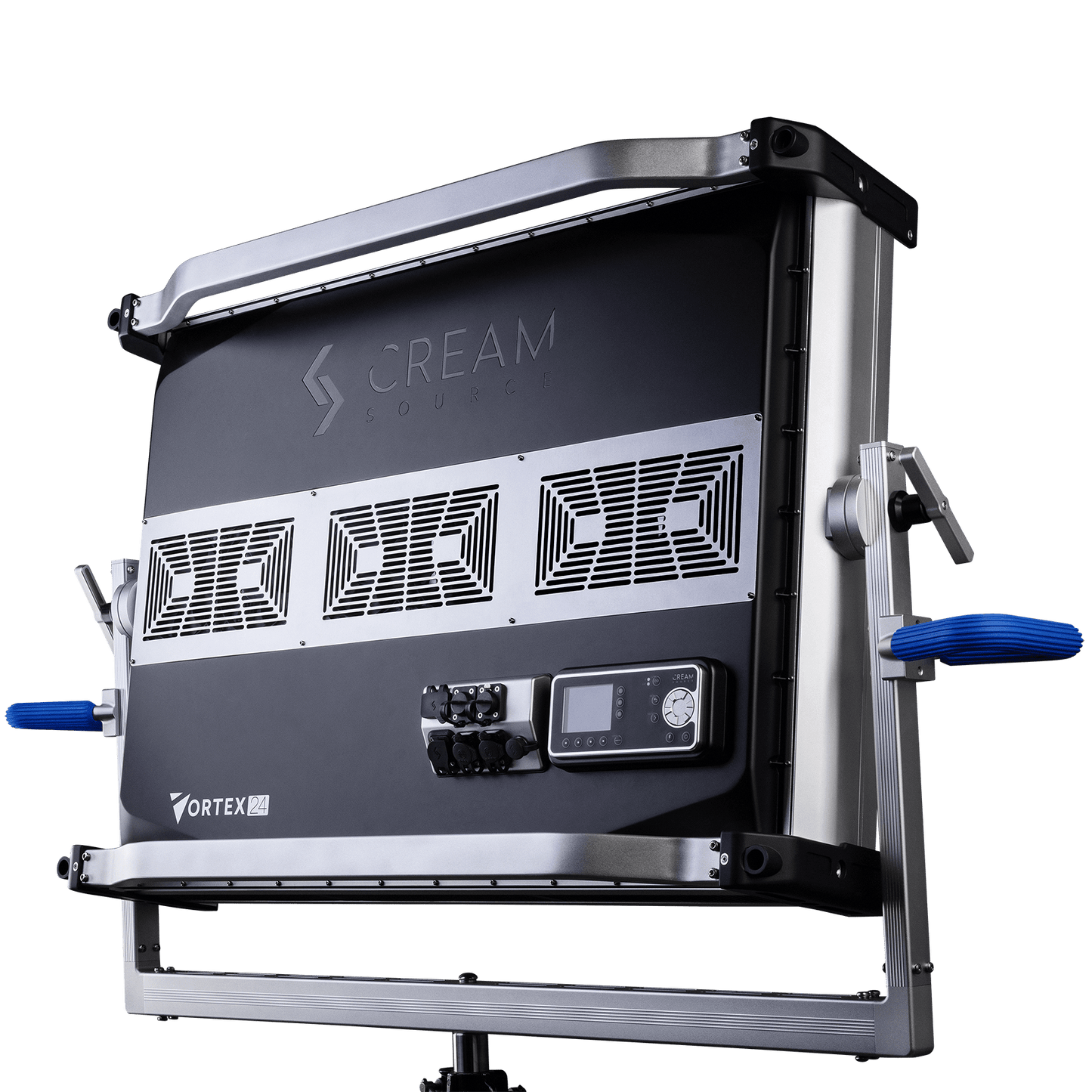

| User interface | High Precision Digital Magnetic Encoder, Backlit Keypad, Colour LCD Display |
| Dimming | 0-100% with High Resolution, Super-Smooth Low End Mode |
| High Speed Capability | Over 5000fps Flicker Free in High Speed Mode |
| Synchronization | Sync Input for Triggering and Syncing to Camera Shutter |
| Max Ambient Temperature | 40°C / 104°F |
| Cooling | Low noise variable speed fans |
| Estimated LED Lifespan | 50,000hrs (L70) |
| Input (AC) | 110-240V AC, 50/60Hz, Max 17.7A. Neutrik powerCON TRUE1 connector |
| Input (DC) | N/A |
| Protection Class | IP65 |
| Weight | 46.5kg / 102.5lb (Excluding yoke) 53.5kg / 117.9lb (Including yoke) |
| Dimensions | 971 x 686 x 258 mm / 38.2 x 27 x 10.2 in. (Excluding yoke) 1333 x 971 x 258 mm / 52.5 x 38.2 x 10.2 in. (Including yoke) |
| Warranty | 3 years on fixtures 12 months on accessories |
| Certifications | Pending: CE, UKCA, RCM, CSA, ETL, FCC |
| Control | On-Board Interface, DMX via standard 5-pin XLR connectors, Wired Remote Control Accessory, Integrated LumenRadio TimoTwo with BLE, 2x etherCON, USB Type A |
What's In The box
Creamsource Vortex24 Colour (K-CSV-24-ESS)
1x Head
1x Yoke
1x Diffusion
1x Power Cable

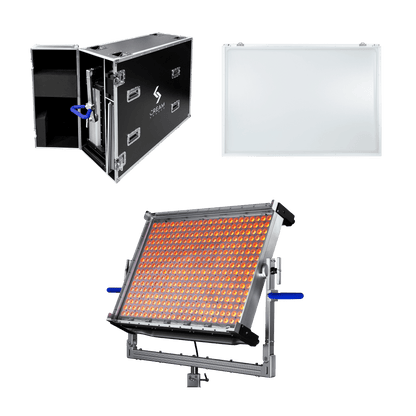

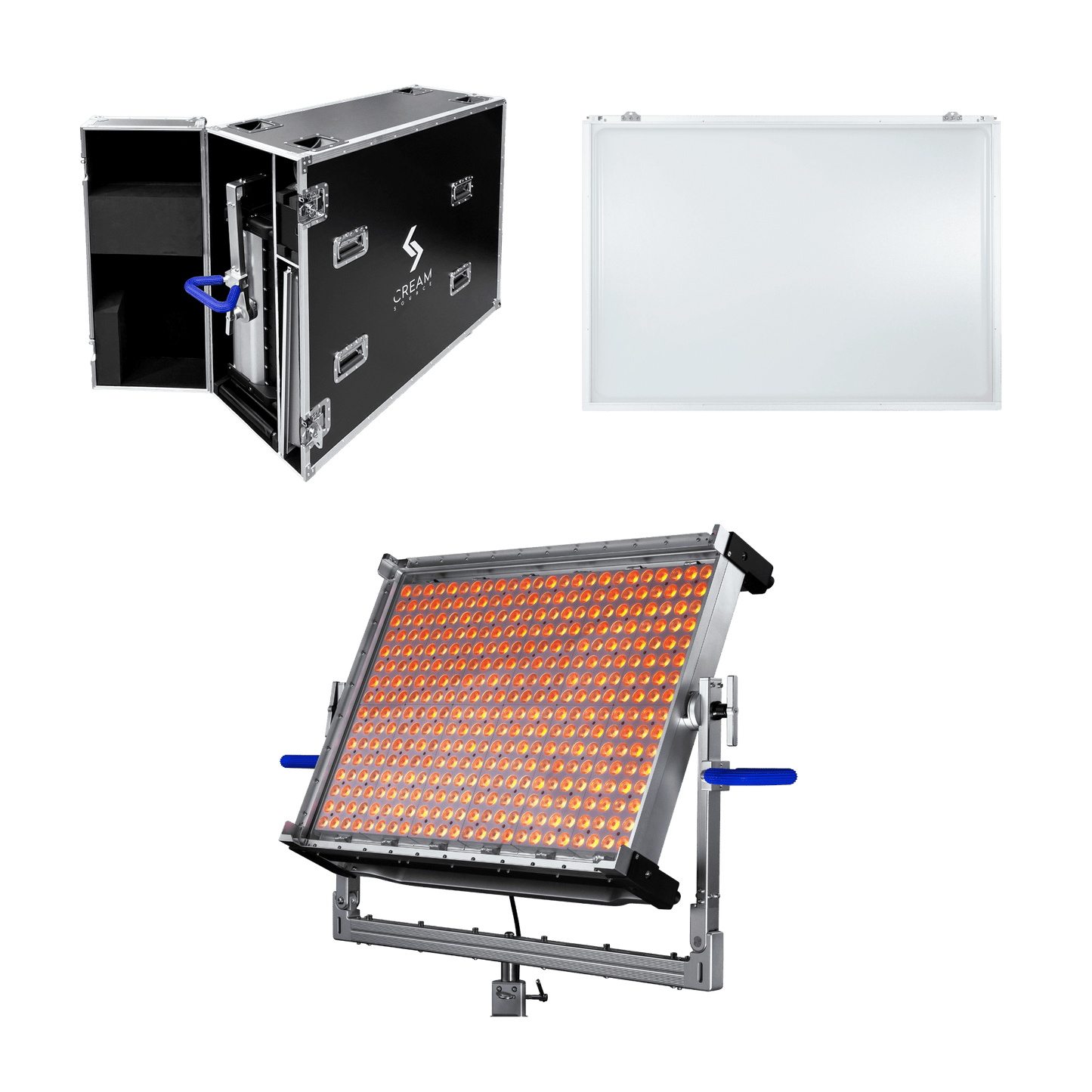

Creamsource Vortex24 Pro Kit (K-CSV-24-PRO)
1x Head
1x Yoke
1x Hardcase
1x Dome
1x Diffusion
1x Power Cable
More Info
Designed with 24 directional pixel zones, the Vortex24 allows for complex lighting effects like replicating the dynamics of fire or motion, with seamless dimming across intensities all while maintaining colour accuracy, free from drift. The Vortex24's efficient design draws 1950W, making it compatible with standard circuits and featuring a 'House Power' mode for 15A circuits. The integration of a built-in ballast means easier storage and transport, allowing for streamlined packing in lighting carts and trucks, optimising your workflow on the go.
Network setup is a breeze with dual Ethernet ports and a Gigabit switch, supporting single-cable runs and efficient daisy-chaining of units. Featuring a front latch filter system for fast changes of diffusers and accessories, the Vortex24 also ships with a medium flat diffuser for instant light softening — no extra purchases necessary.
Downloads
Download Creamsource Vortex24 Colour Datasheet
