Fiilex

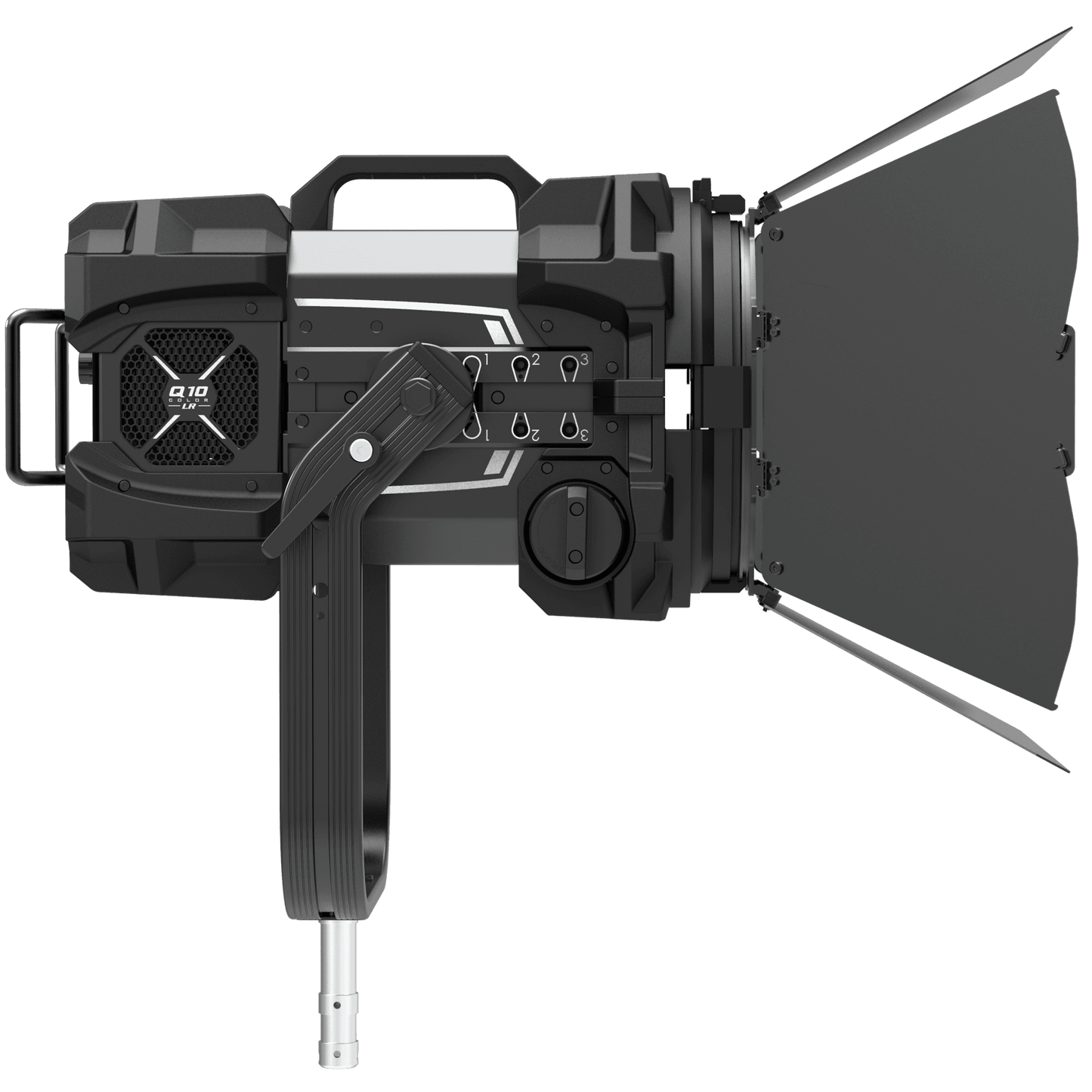

Fiilex Q10 Colour LED Fresnel

Fiilex Q10 Colour LED Fresnel

Regular price $300.00 (ex GST Per Day)
Regular price Sale price $300.00
Sale Sold out
Description

The Q10 Colour-LR is a 900W 10” LED Fresnel that generates high-quality full-color light output. This fixture uses the latest iteration of Fiilex’s Dense Matrix LED technology to deliver color quality and optical versatility that are superior to previous generations of LED fresnels. With its wide spot/flood range, smooth dimming to 0%, no flicker, and high CRI, the Q10 Colour combines the extensive feature set of top-tier RGBW LEDs with the performance of a tungsten fresnel.



Features
  • High-CRI white light output (2000-10000K)
  • 8 and 16-bit color modes: CCTRGBW, CCTHSI, CIExy, etc.
  • Unmatched spot/flood range of 11-65°
  • Smooth and Sharp dimming modes
  • Removable fresnel for wider throw / softbox compatibility
  • DMX-controllable fan modes: Full, Variable, Silent, Off
  • 8-leaf barndoor cuts clean with no color splitting
  • Height adjustable yoke
  • IP-X5 Rating (water resistant)
  • Wireless control via integrated LumenRadio



Specs
Fresnel Size 10"
Beam Angle 11°-65° with Fresnel (78° without Fresnel)
CCT Range 2000-10000K continuous tuning + magenta/green shift
CRI / TLCI 95 / 90 typical
Control Modes CCT, HSI, RGBW, Gels, Effects, CCTRGBW, CCTHSI, CIExy, ICTHS, and more
Dimming 100 - 0% flicker free
Dimming Modes Smooth, Sharp
Light Engine DiCon Dense Matrix LED
Power Consumption 900W max AC | 850W max DC
BTUs/hour 3071 (BTUs/hour) max
DC Input 48V DC (via powerCON 32 A)
AC Input 100 - 240V AC, 50~60Hz (via powerCON TRUE1)
DMX / RDM Port XLR-5
Wireless Control Integrated LumenRadio
Ethernet sACN, ArtNet (via etherCON)
USB Power Output 5V/1A (via USB-A)
Weight 44 lb / 20kg
Size (L x W x H) 19.8" x 18.1" x 25.1" / 50.2cm x 45.9cm x 63.6cm
Mount Type Combo (baby stud female / junior stud male)
IP Rating IP-X5 (water resistant)
Thermal Design Aluminum extrusion cooling system w/ fan
Operating Temperature 32 - 104ºF / 0 - 40º C





Downloads

Download Fiilex Q10 Colour LED Fresnel Datasheet
