Fiilex Q3 Colour 90w LED Fresnel Kit
Fiilex Q3 Colour 90w LED Fresnel Kit
Couldn't load pickup availability
Description

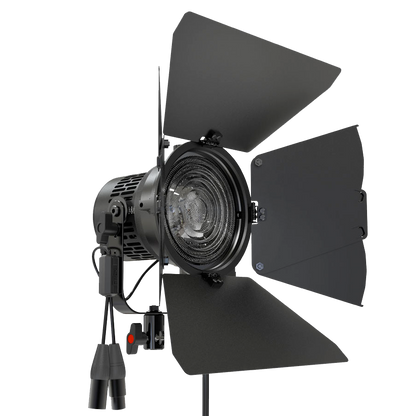

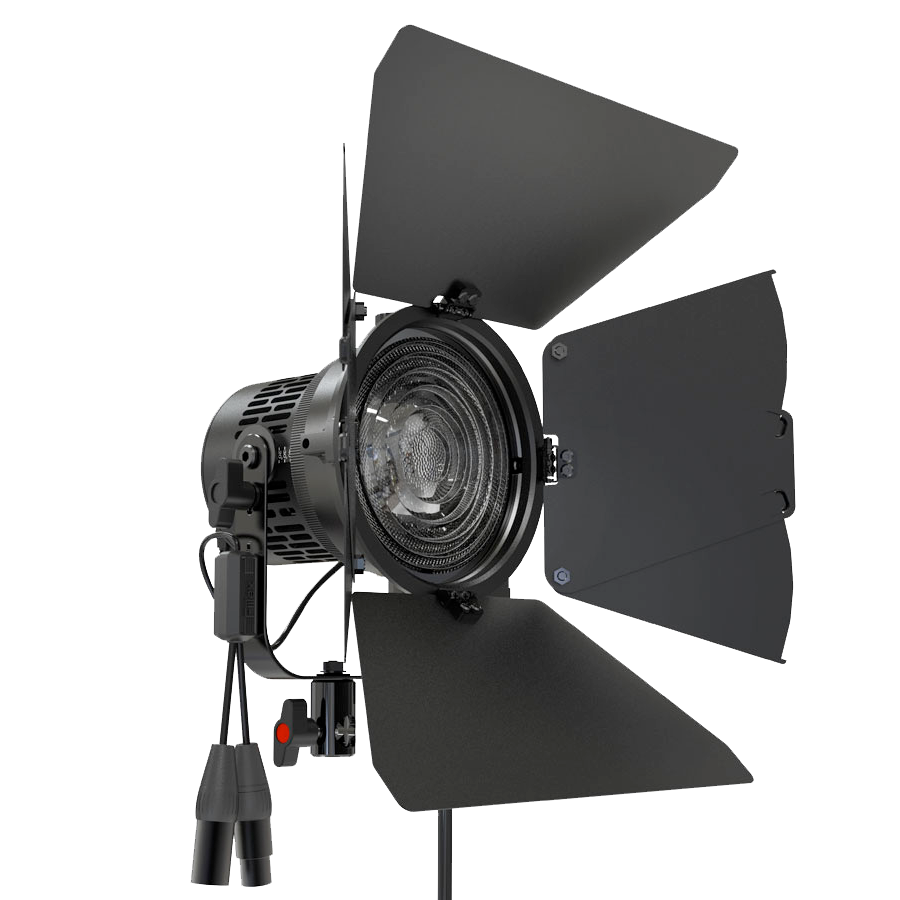

The Q3 Color-LR is a cinema-grade 90W full-color fresnel that packs a ton of features into its compact four pound housing. Almost a point source, this LED is capable of producing crisp shadows and clean barndoor cuts. Its IP-X5 rating and flexible mounting options also means it can be used and rigged in harsh and dynamic environments. No other portable LED fixture can match the Q3's combination of power, size, and control.
Features
- High-CRI white light output (2000-10000K)
- 8 and 16-bit color modes: CCTRGBW, CCTHSI, CIExy, etc.
- IP-X5 Rating (water resistant)
- Easy PSU / battery mounting on yoke
- Removable yoke for versatile rigging
- Wireless control via integrated LumenRadio
- Hardline DMX via XLR-5 adapter
- Smooth and Sharp dimming modes
- DMX-controllable fan modes: Full, Auto, Silent, Off
- 8-leaf barndoor cuts clean with no color splitting
What's In The Box
Q3 COLOR-LR (FLXQ3CLRLR)
The bundle will include the following items and they are all packed in the same shipping box:
1x Q3 Color Head (FLXQ3CLRLR-HEAD)
1x Fiilex Q3 DMX Adapter TRRS to XLR5 (FLXQ3CLR-TRRS2XLR5)
1x Fiilex Q3 COLOR Barndoor 8 Leaf (FLXQ3CLR-BD8
1x Fiilex 90W V-Mount PSU (FLXPSU-90V)

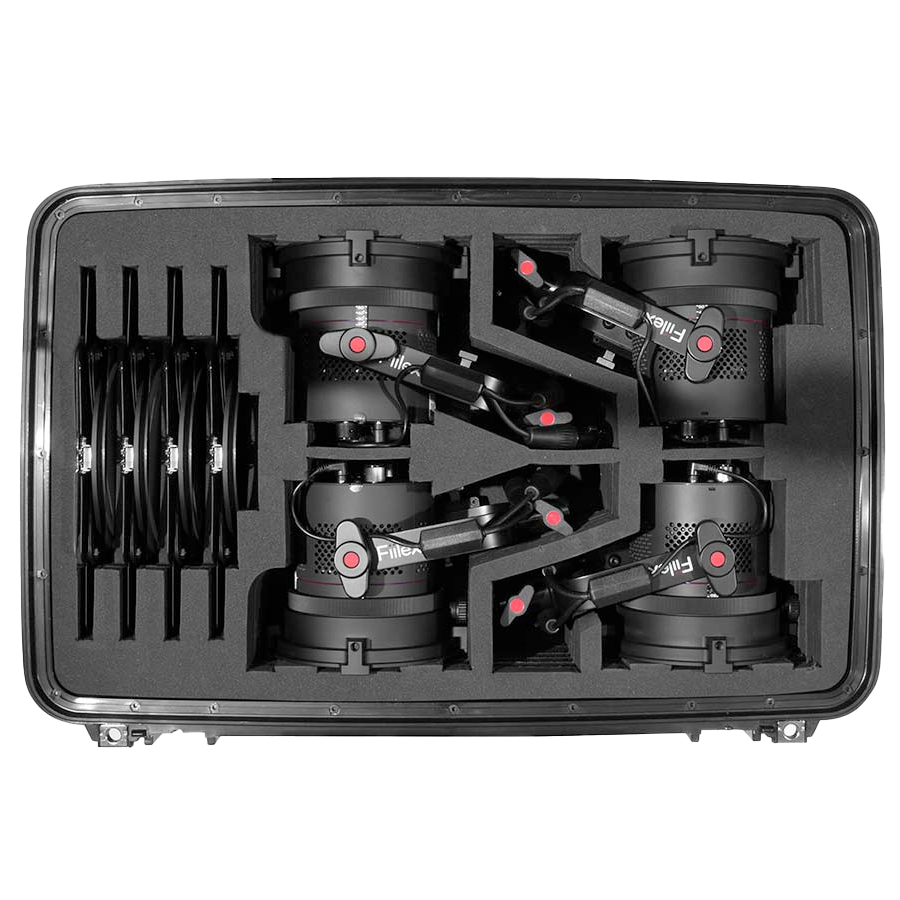

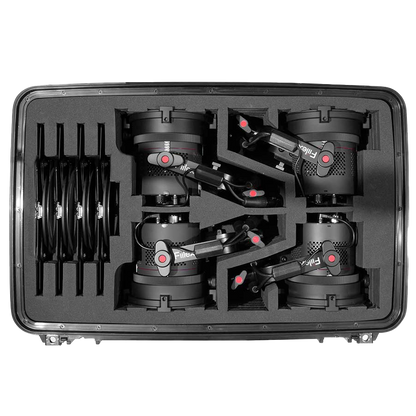

Q3 COLOR-LR K4 Kit (FLXQ3CLRLR-K4-KIT)
1x Q3 Color Head (FLXQ3CLRLR-HEAD)
4x Fiilex Q3 COLOR Barndoor 8 Leaf (FLXQ3CLR-BD8)
4x Fiilex 90W V-Mount PSU (FLXPSU-90V)
4x Fiilex Q3 DMX Adapter TRRS to XLR5 (FLXQ3CLR-TRRS2XLR5)
1x Fiilex Q3 K4 Case (FLXQ3CLR-K4-CASE)
Specs
| Fresnel Diameter | 5” |
| Beam Angle | 15°-45° with fresnel (55° without fresnel) |
| CCT Range | 2000-10000K continuous tuning + magenta/green shift |
| CRI / TLCI | 95 / 90 typical |
| Control Modes | CCT, HSI, RGBW, Gels, CCTRGBW, CCTHSI, CIExy, ICTHS, and more |
| Dimming | 100 - 0% flicker free |
| Dimming Modes / Curve | Smooth, Sharp / Linear, Gamma |
| Light Engine | DiCon Dense Matrix LED |
| Power Consumption | 90W max AC | 80W max DC |
| BTUs/hour | 307 (BTUs/hour) max |
| DC Input | 14 - 30V DC (via 5.5mm x 2.5mm Barrel) |
| AC Input | 100 - 240V AC, 50 ~ 60Hz |
| DMX/RDM Port | TRRS (XLR-5 via adapter) |
| Wireless Control | Integrated LumenRadio CRMX |
| USB Power Output | 5V/1A (via USB-C) |
| Weight | Fixture: 4.5 lbs / 2kg (includes yoke, barndoors) | Power adapter: 1.1 lbs/0.5kg |
| Size (L x W x H) | 5.7" x 6.3" x 9.0" / 14.4cm x 15.9cm x 23.0cm |
| Mount Type | Baby stud 5/8" female (16mm) |
| IP Rating | IP-X5 (rain-resistant) |
| Thermal Design | Controllable fan |
| Operating Temperature | 0-40ºC / 32-104ºF |
Photometric Data
