LiteGear Auroris

LiteGear Auroris

$1,980.00 (ex GST Per Day)
$0.00 $1,980.00
Sale Sold out
Description

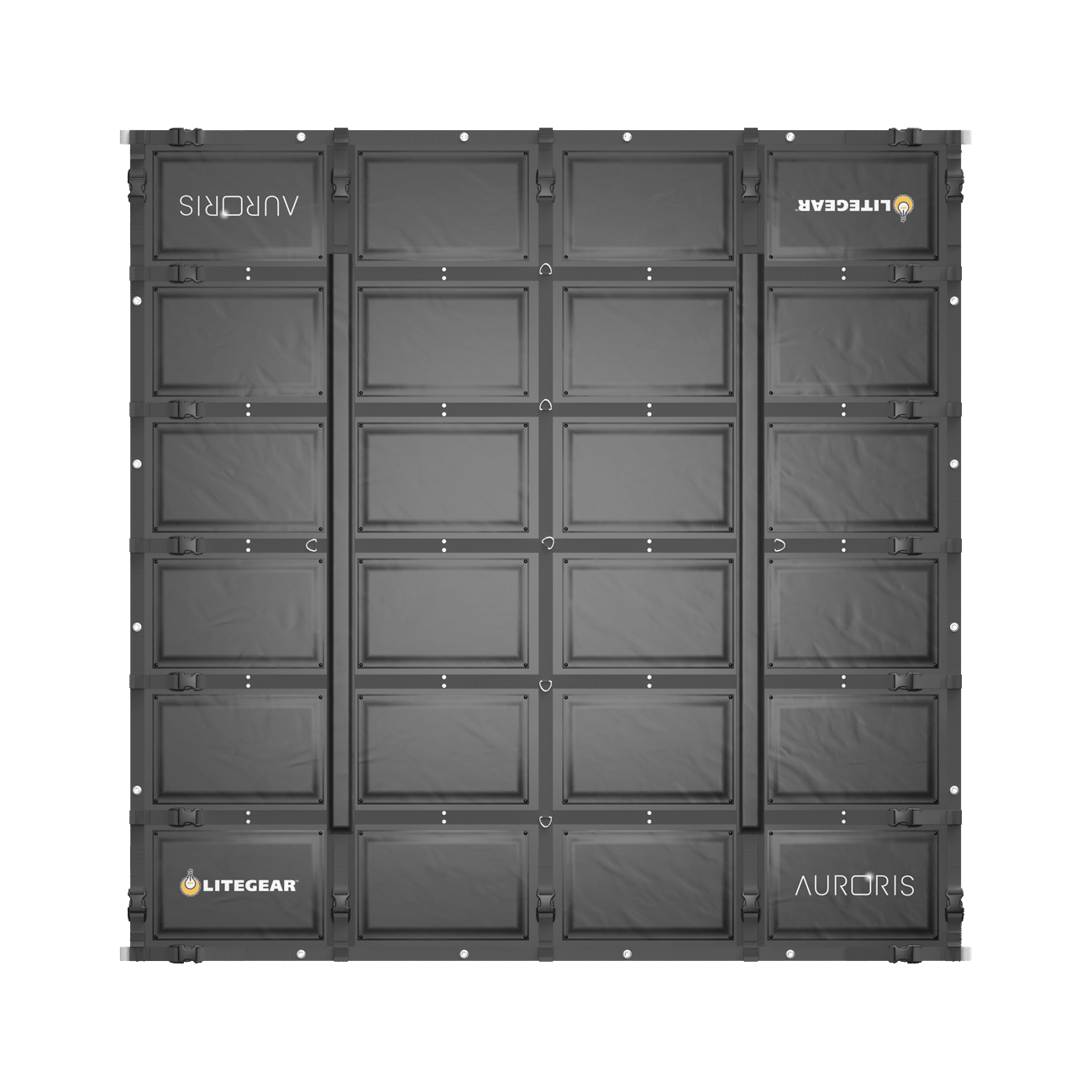

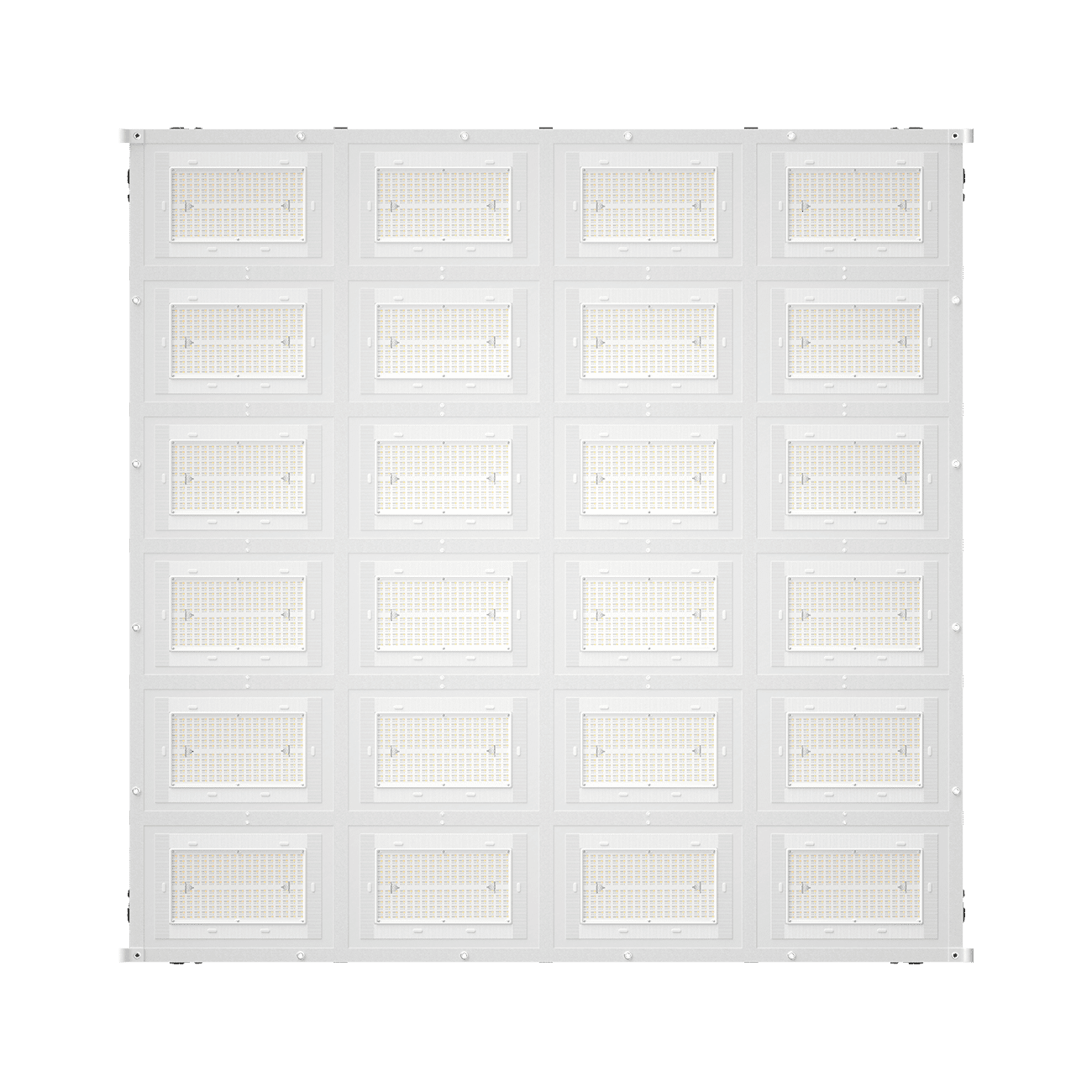

The Auroris is a full-colour, overhead light source that combines high-quality colour rendition and precision control in one sleek, easy-to-use package. Powered by LiteGear’s Spectrum technology, Auroris’s 24 large-format pixels make for a complete pixel mappable source that can cover a 100 square foot area with just one fixture. Designed to be light on weight and easy to rig, Auroris is one of the slimmest, most versatile soft lights, period.

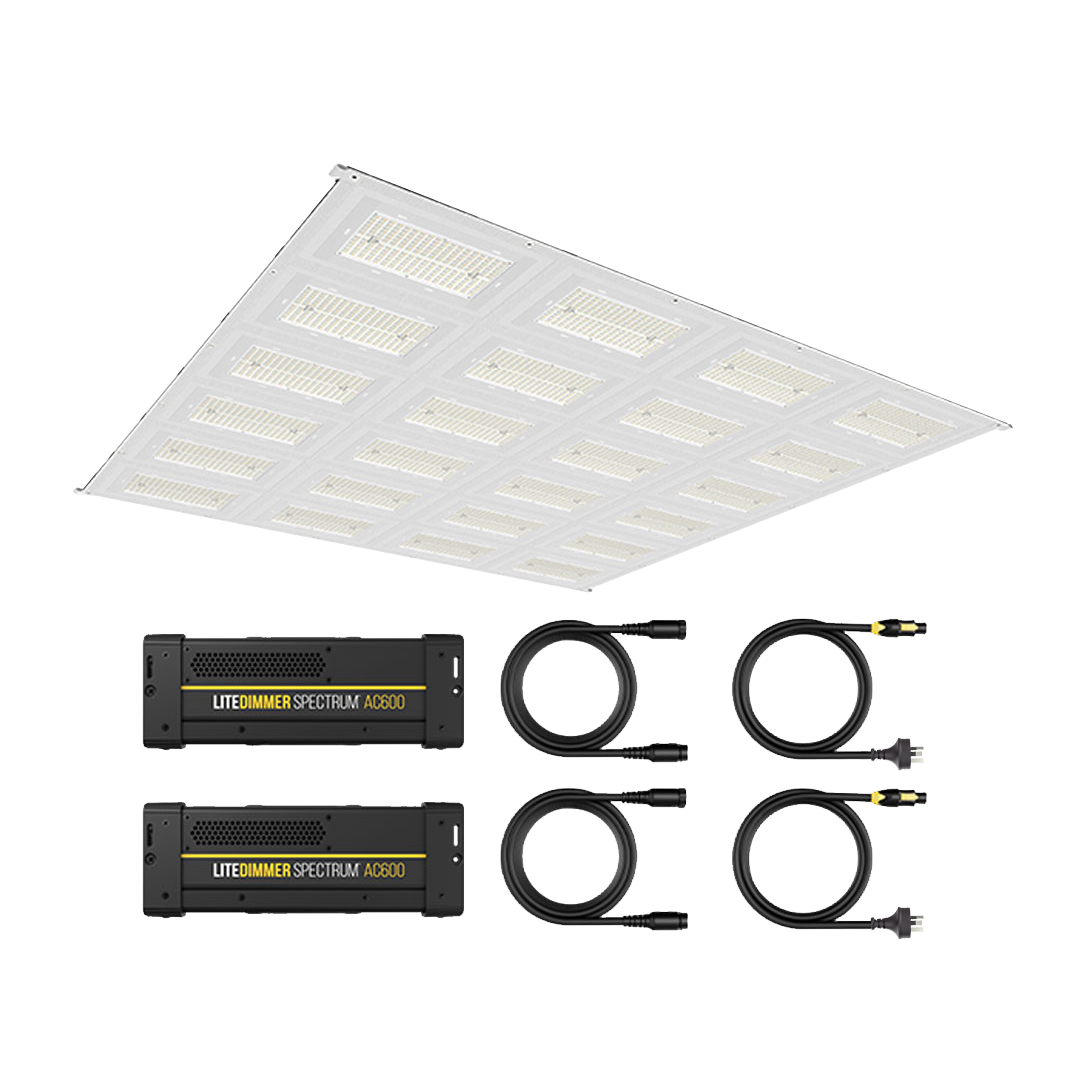

What's In The Box

    LiteGear Auroris Set 10ft Softlight
    LiteDimmer Spectrum AC600
    Auroris Road Case
    Auroris Storage Bag
    LiteDimmer Truss Mount x 2
    28-Pin Header Cable x 2
    Mains Cable
    powerCON Pass-Thru
    Auroris X Diffusion and Skirt
    Auroris X Teaser



    LiteGear Auroris Set 10ft Softlight with Truss System
    LiteDimmer Spectrum AC600
    Auroris Road Case
    Auroris Storage Bag
    LiteDimmer Truss Mount x 2
    28-Pin Header Cable x 2
    Mains Cable
    powerCON Pass-Thru
    Auroris X Diffusion and Skirt
    Auroris X Teaser
    3m flat truss x 4 w/ 4 x corners



    Specs

    HEAD SPECIFICATIONS
    Product Name: Auroris X
    Item Number: AUR-SPECTRUM-X-HEAD
    Model: 295-1
    Beam Angle: 120º HPA
    Input Voltage: 48VDC
    Input Current: 1.04A per module (contains 24 modules)
    Current: 50W Nominal per module (contains 24 modules)
    Total Power: 1,400W
    Color Temperature Range: 2,000K to 11,000K
    Tint Control: Full plus and minus green adjustment
    Dimming Range: 0 to 100% Continuous (When paired with a compatible LiteGear Dimmer)
    Colored Light: 6-color, wide gamut hue and saturation control
    Estimated LED Lifetime: 50,000 hrs
    Power & Data Connector: 28-Pin Connection
    Pixels: 24 individual large format pixels
    IP Rating: IP20
    Max Operating Temp: 122°F (50°C)
    Weight: 114 lbs (51.8 kg)
    Color Rendition: CRI Average: >= 95, TLCI Average: >= 95
    Total LED Quantity: 31,104
    Dimensions: Height: 10 ft (3 m), Width: 10 ft (3 m), Depth: 1 in (25.4 mm)
    Mounting: (24) 2 inch Wide Polypropalene Heavy Weight Straps, with Heavy Duty Plastic Buckles (20) #4 Gromets on perimeter of fixture as an alternate mounting method
    Certifications: ETL, CE, UKCA, FCC

    DIMMER SPECIFICATIONS
    Product Name:LiteDimmer Spectrum AC600
    Item Number: LD-SPECTRUM-AC600
    Model: 298-1
    Input Voltage: 100-240 VAC, 50/60 Hz
    Input Current: 4.5A to 9A
    Output Voltage: 48VDC
    Output Current: 14.7A to 21A
    Data Connectors: USB-A, 2x EtherCon, 5-Pin DMX In and Thru, Internal CRMX Antenna
    Data Connectors: PDX, 28-Pin Connector
    Mains Power Connectors:powerCON TRUE1 TOP In and Thru (Edison / Schuko / Bare Ends cables available)
    Control: DMX, RDM, CRMX (Art-Net, sACN coming soon)
    Swiches:On-board On/Off Switch
    Power: 700W Maximum
    IP Rating: IP20
    Weight: 12.6 lbs (5.7 kg)
    Dimensions: Height: 5.8 in (147.3 mm), Width: 7.2 in (182.9 mm), Length: 15.7 in (388.8 mm)
    Max Operating Temperature: 122ºF (50ºC)
    Mounting: 2 kMounts (truss & stand mounts available)
    Certifications: ETL, CE, UKCA, FCC
